Tuya WiFi Smart 63A Circuit Breaker – AC 220V Over/Under Voltage & Earth Leakage Protector with Energy Meter

Description

⚡ Tuya WiFi Smart 63A Voltage Protector & Circuit Breaker with Energy Meter

Protect and control your electrical system with this Tuya WiFi Smart Circuit Breaker, designed for real-time monitoring, advanced protection, and smart automation. Ideal for homes, offices, and industrial setups, this device combines voltage stabilizer, leakage protection, and energy metering into one compact solution.

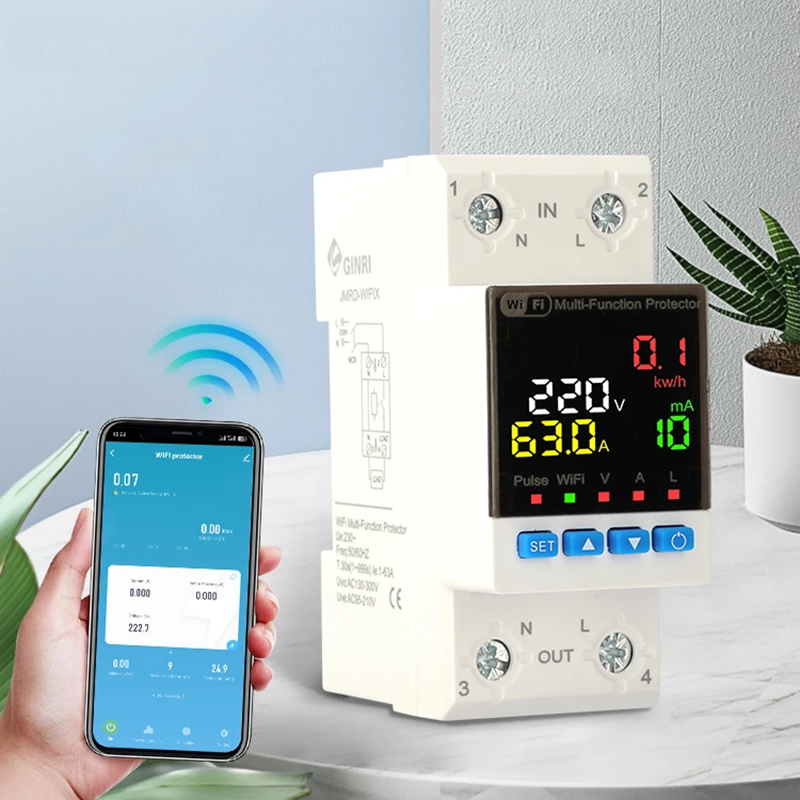

With app control via Tuya, you can monitor power usage, adjust protection settings, and manage your system remotely.

---

✨ Key Features

📱 Smart WiFi Control (Tuya App)
Control and monitor your power system remotely from anywhere using your smartphone.

⚡ Comprehensive Protection System

• Overvoltage Protection

• Undervoltage Protection

• Overcurrent Protection

• Earth Leakage Protection (10mA–300mA, adjustable & switchable)

📊 Real-Time Energy Monitoring
Track electricity usage with built-in energy meter (0–99999.9 kWh) via LED display and app.

🔧 Fully Adjustable Settings

• Voltage range: 95V – 300V input

• Overvoltage: 130V – 300V adjustable

• Undervoltage: 95V – 210V adjustable

• Current: 1A – 63A adjustable

⏱ Custom Delay & Recovery Time

• Power-on delay: 1–999s

• Recovery delay: 1–999s

• Trip delay: 0–30s

🔄 Auto Reset & Smart Relay Function
Automatically restores power after fault clearance for uninterrupted operation.

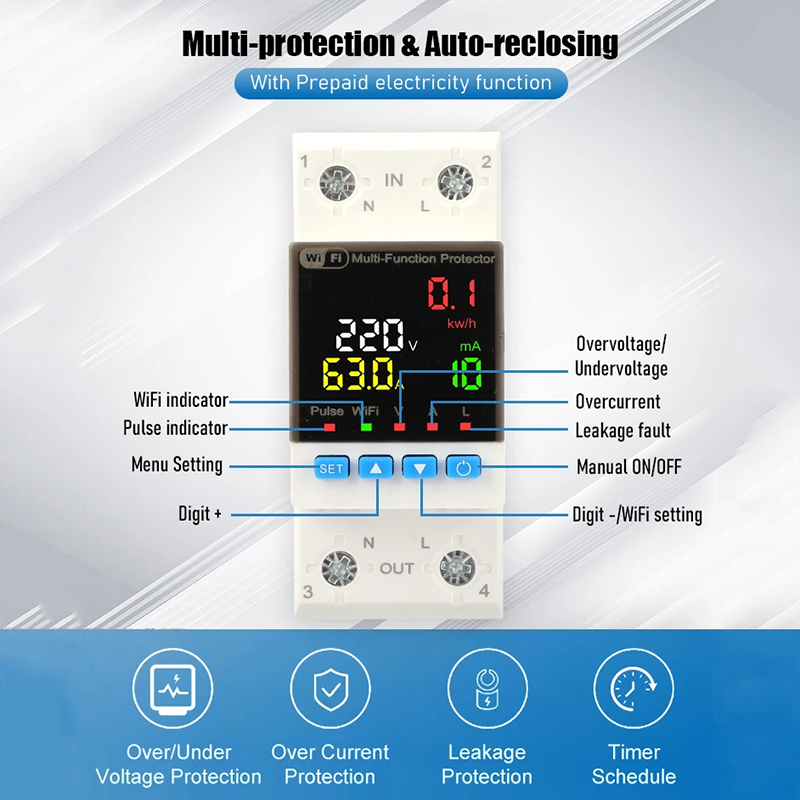

💡 LED Digital Display
Clearly shows voltage, current, energy consumption, and system status.

⚙️ High Efficiency (99%)
Ensures minimal energy loss and stable performance.

---

⚙️ Product Specifications

• Model: JMRD-WIFIX

• Type: Smart Relay Voltage Protector / Circuit Breaker

• Phase: Single Phase

• Rated Current: 1–63A (Default 63A)

• Rated Capacity: 10 kVA

• Input Voltage: AC 95–300V

• Frequency: 50/60Hz

• Efficiency: 99%

• Leakage Protection: 10mA–300mA (Adjustable)

• Trip Time: 0–30s

• Display: LED Digital Display

• Mounting: 35mm DIN Rail

• Protection Level: IP40 (Housing) / IP20 (Terminals)

• Operating Temp: -20°C to 55°C

• Humidity: ≤85% RH (Non-condensing)

• Mechanical Life: 1,000,000 cycles

• Electrical Life: 100,000 cycles

• Certification: CE, CCC

• Warranty: 12 Months

---

🏠 Applications

✔ Home electrical protection
✔ Offices & commercial spaces
✔ Industrial equipment
✔ Solar & inverter systems
✔ Smart energy management setups

---

💡 Why Choose This Smart Protector?

✔ All-in-one protection + monitoring device
✔ Remote control via mobile app
✔ Highly customizable safety settings
✔ Accurate energy tracking
✔ Easy DIN rail installation
✔ Reliable and long-lasting performance

---

📦 Package Includes

• 1 × Tuya WiFi Smart Circuit Breaker

• 1 × User Manual

---

🔥 Smart, safe, and efficient — take full control of your power system with this advanced WiFi voltage protector & energy meter.
